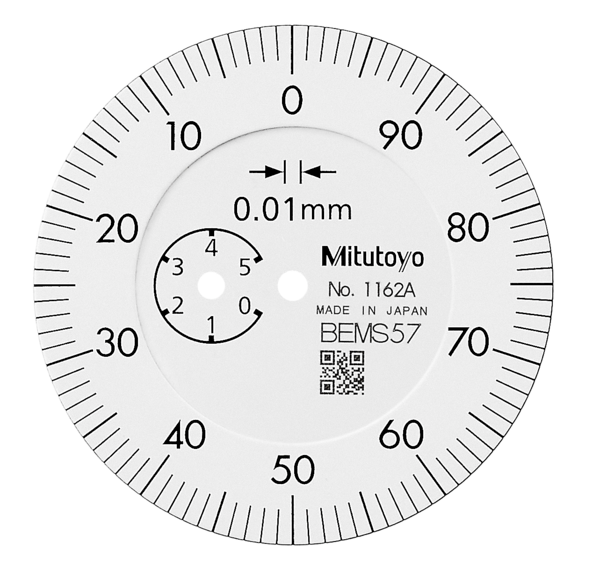

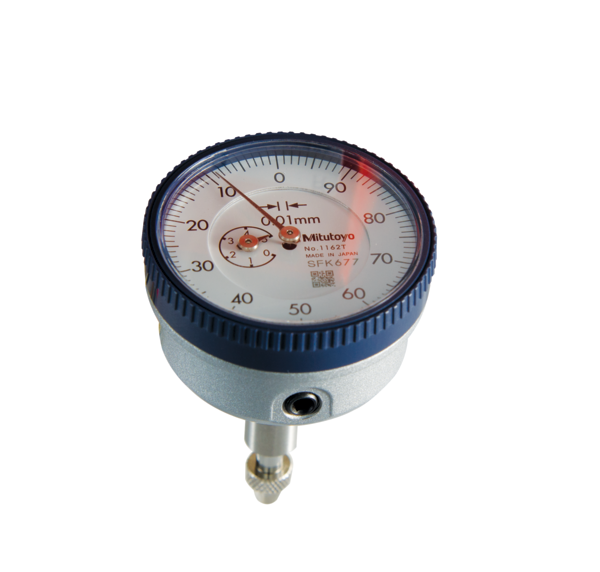

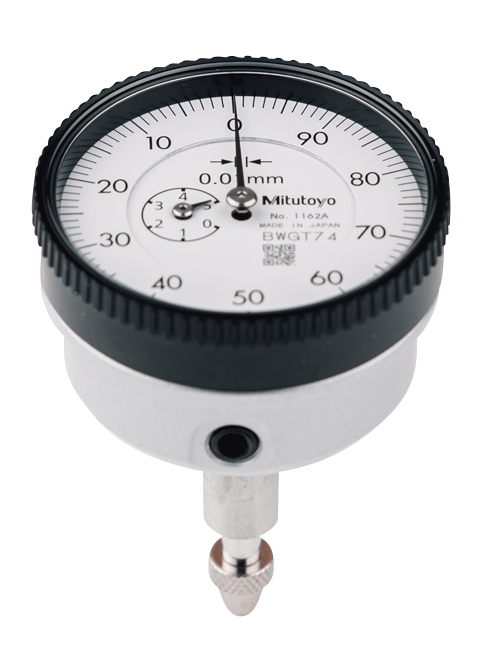

Dial Gauge, ISO Type

Full Description: This is a back plunger, dial indicator with bezel ? 40 mm. It offers you the following benefits:

It is ideal for use in applications where space is limited.
; Stem hole ?: 8 mm; Magnetic stand size (LXWXH): 13.8; Base size (LxWxH): 22.7; Clamping force (vertical): 25; Mass [g]: 80; Range [mm]: 5; Battery life: 15; Type: EN ISO Standard; Functions: 4; Inch-Metric: Metric; Delivered: With certificate of inspection; Range per rev.: 1 mm; EN ISO 463: Errors of indication over a range of (see below); MPE measuring range: 18; Contact point: Carbide tipped, thread: M 2.5 x 0.45 mm; Dial reading: 100-0; Digital/Analog: Analog; fges: 19; Graduation: 0.01; H MPE (Hysteresis): 4; Measuring force: 0.4-1.4 N; Range [mue]: 18; R MPE (Repeatability): 3; MPE any 1 revolution: 12; MPE any 1/2 revolution: 11; MPE any 1/10 revolution: 7; Continuous dial: Yes; Reverse reading: Yes;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/1294147373216/Dial%20Gauge%2C%20Lug%20Back%2C%20ISO%20Type/$catalogue/mitutoyoData/PR/1162A/index.xhtml
