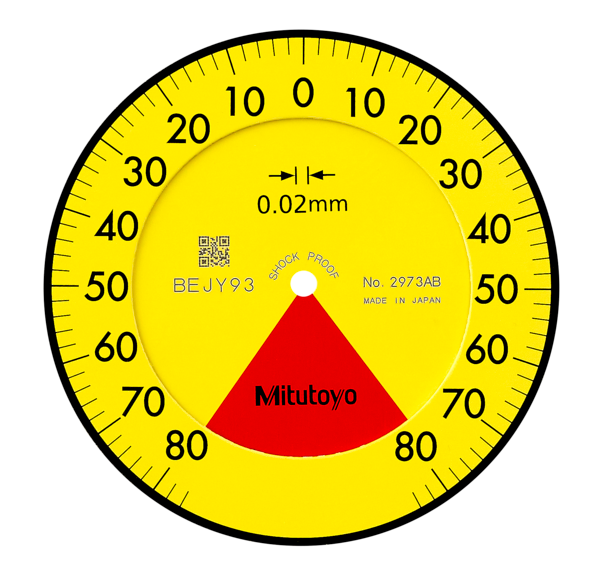

Dial Gauge, Flat Back, ISO Type

Full Description: Lightweight type This is a one revolution dial indicator. It offers you the following benefits:

Excellent water and drip-proof characteristics
It eliminates the possibility of reading errors due to miscounting multiple revolutions.
; Stem hole ?: 8 mm; Magnetic stand size (LXWXH): 7.6; Base size (LxWxH): 66.3; Clamping force (vertical): 20.3; Mass [g]: 75; Range [mm]: 1.6; Battery life: 15; Type: EN ISO Standard; Functions: 4; Inch-Metric: Metric; Delivered: with certificate of inspection; Range per rev.: 2 mm; EN ISO 463: Errors of indication over a range of (see below); MPE measuring range: 16; Contact point: Carbide tipped, thread: M 2.5 x 0.45 mm; Dial reading: 80-0-80; Digital/Analog: Analog; fges: 19; Graduation: 0.02; H MPE (Hysteresis): 4; Measuring force: 0.4-1.4 N; Range [mue]: 16; R MPE (Repeatability): 5; MPE any 1/10 revolution: 8; Plunger Stroke: 3.5;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/1300889189890/Dial%20Gauge%2C%20Flat%20Back%2C%20ISO%20Type/$catalogue/mitutoyoData/PR/2973AB/index.xhtml
