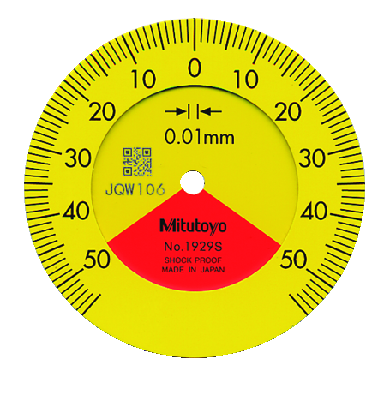

Dial Gauge, Flat Back, ISO Type

Full Description: One Revolution, Shock- & Dustproof, 1mm, 0,01mm; Stem hole ?: 8 mm; Magnetic stand size (LXWXH): 7.6; Base size (LxWxH): 66; Clamping force (vertical): 20.3; Mass [g]: 70; Range [mm]: 1; Battery life: 10; Type: EN ISO Standard; Functions: 3; Inch-Metric: Metric; Delivered: With certificate of inspection; Range per rev.: 1.4 mm; EN ISO 463: Errors of indication over a range of (see below); MPE measuring range: 7; Contact point: Carbide tipped, thread: M 2.5 x 0.45 mm; Dial reading: 50-0-50; Digital/Analog: Analog; fges: 13; Graduation: 0.01; H MPE (Hysteresis): 3; Measuring force: 0.4-1.4 N; Range [mue]: 7; R MPE (Repeatability): 3; MPE any 1/10 revolution: 5; Plunger Stroke: 3.5;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/1300889189890/Dial%20Gauge%2C%20Flat%20Back%2C%20ISO%20Type/$catalogue/mitutoyoData/PR/2972AB/index.xhtml
