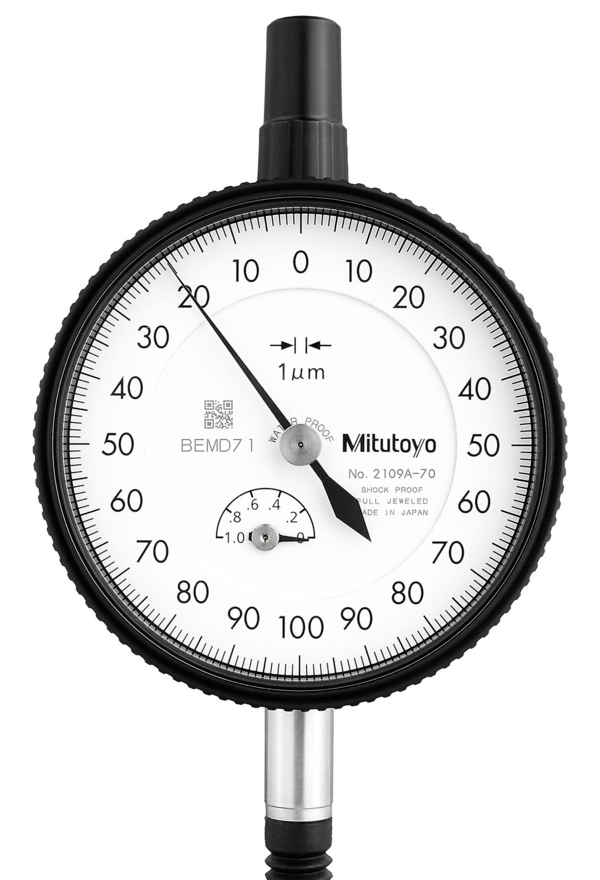

Dial Gauge, Flat Back, ISO Type

Full Description: Standard Type, 1 mm Range, 0,001 mm Graduation This is a standard dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
; Stem hole ?: 8 mm; Magnetic stand size (LXWXH): 7.6; Base size (LxWxH): 65.3; Clamping force (vertical): 12.3; Mass [g]: 140; Range [mm]: 1; Battery life: 3; Type: EN ISO Standard; Functions: 2; Inch-Metric: Metric; Delivered: With certificate of inspection; Range per rev.: 0.2 mm; Balanced dial: Yes; EN ISO 463: Errors of indication over a range of (see below); MPE measuring range: 5; Contact point: Carbide tipped, thread: M 2.5 x 0.45 mm; Dial reading: 0-100-0; Digital/Analog: Analog; fges: 5; Graduation: 0.001; H MPE (Hysteresis): 2; Measuring force: 0,4-2; Range [mue]: 5; R MPE (Repeatability): 1; MPE any 1 revolution: 4.5; MPE any 1/2 revolution: 4; MPE any 1/10 revolution: 2.5; Shockproof: Yes; Jeweled bearing: Yes; IP64: Yes;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/1300888710750/Dial%20Gauge%2C%20Flat%20Back%2C%20ISO%20Type/$catalogue/mitutoyoData/PR/2109AB-70/index.xhtml
