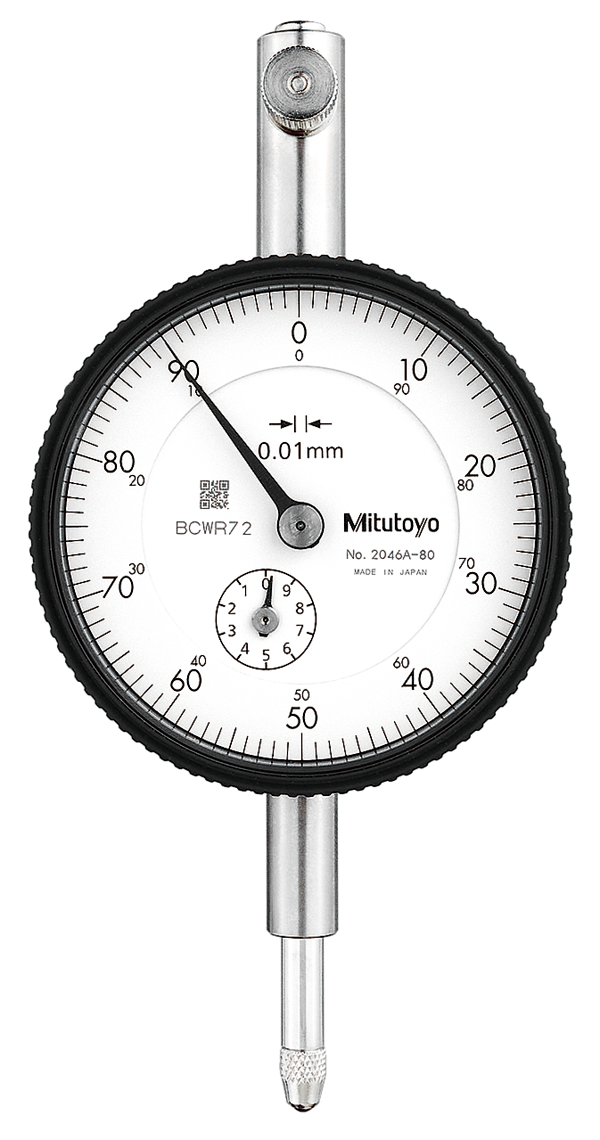

Dial Gauge, Flat Back, ISO Type

Full Description: This special dial indicators offer you the following benefits: In an adjustable pointer type the pointer can be adjusted independently of the position of the spindle by rotating the top knob. In a peak hold type a mechanism holds the pointer and the spindle at the position of maximum depression and hence displays the maximum value. ; Stem hole ?: 8 mm; Mass [g]: 149; Range [mm]: 10; Battery life: 12; Type: EN ISO Standard; Functions: 3; Inch-Metric: Metric; Delivered: With certificate of inspection; Range per rev.: 1 mm; EN ISO 463: Errors of indication over a range of (see below); MPE measuring range: 15; Contact point: Carbide tipped, thread: M 2.5 x 0.45 mm; Dial reading: ?0-100; Digital/Analog: Analog; fges: 15; Graduation: 0,01 mm; H MPE (Hysteresis): 3; Measuring force: 0,4-5; Range [mue]: 15; R MPE (Repeatability): 3; MPE any 1 revolution: 10; MPE any 1/2 revolution: 9; MPE any 1/10 revolution: 5; Continuous dial: Yes; Peak retaining: Yes;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/1294000485561/Dial%20Gauge%2C%20Flat%20Back%2C%20ISO%20Type/$catalogue/mitutoyoData/PR/2046AB-80/index.xhtml
