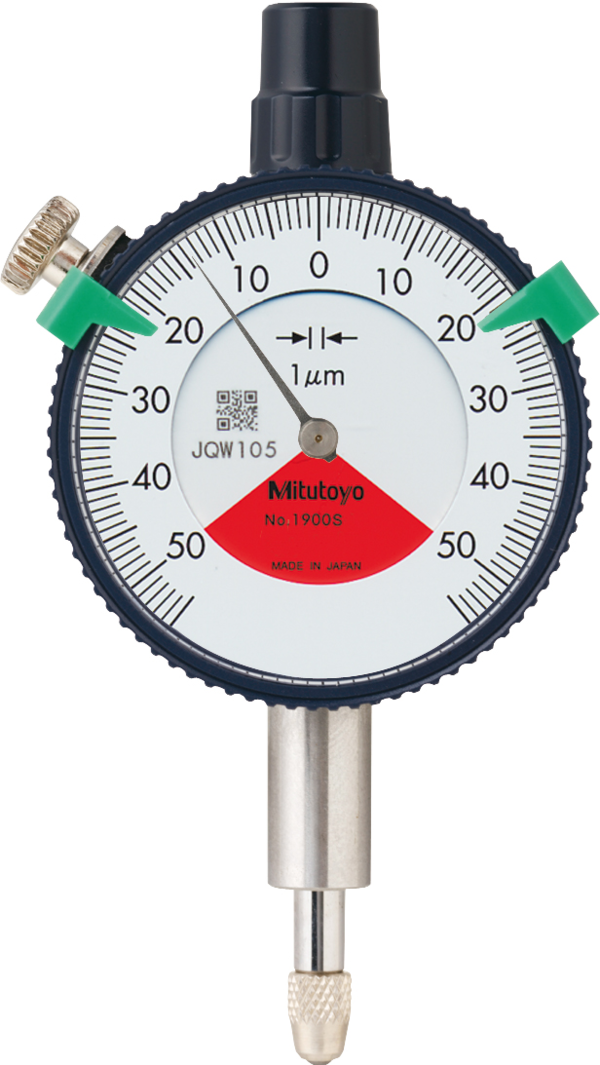

Dial Gauge, Flat Back, ISO Type

Full Description: This is a compact, metric dial indicator. It offers you the following benefits:

It eliminates the possibility of reading errors due to miscounting multiple revolutions.
; Stem hole ?: 8 mm; Magnetic stand size (LXWXH): 6.6; Base size (LxWxH): 53.5; Clamping force (vertical): 16.8; Mass [g]: 75; Range [mm]: 0.1; Battery life: 3; Type: EN ISO Standard; Functions: 2; Inch-Metric: Metric; Delivered: With certificate of inspection; Range per rev.: 0.14 mm; Balanced dial: Yes; EN ISO 463: Errors of indication over a range of (see below); MPE measuring range: 4; Contact point: Carbide tipped, thread: M 2.5 x 0.45 mm; Dial reading: 50-0-50; Digital/Analog: Analog; fges: 5; Graduation: 0.001; H MPE (Hysteresis): 2; Measuring force: 0,4 – 1,5 N; Range [mue]: 4; R MPE (Repeatability): 1; MPE any 1/10 revolution: 2; Shockproof: Yes; Jeweled bearing: Yes; Error of indication one revolution: Yes; Plunger Stroke: 2; IP52: Yes;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/1300889095687/Dial%20Gauge%2C%20Flat%20Back%2C%20ISO%20Type/$catalogue/mitutoyoData/PR/1900AB-72/index.xhtml
