Absolute Digital Disc Mic., Adj. Force

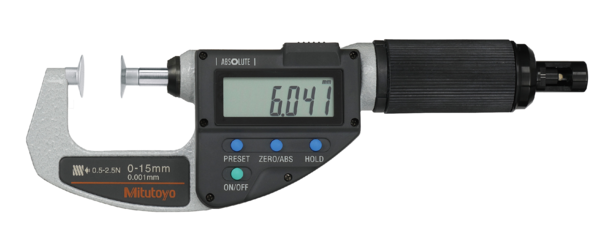

Full Description: The ABSOLUTE Digimatic Disc Micrometer Quickmike allows you to measure with a fast spindle feed of 10 mm per thimble rotation. It offers you the following benefits:

Suitable for measuring felt, rubber, cardboard, fabric etc.
Suitable to measure “root tangent length” of spur gears and helical gears.?
With?a non-rotating spindle and disc-shaped measuring surface.
Measuring force is adjustable?for various kinds of workpieces (series 227)
; Stem hole ?: 13.8; Magnetic stand size (LXWXH): 15; Mass [g]: 300; Range [mm]: 0 – 15; Power supply report: 1 battery SR-44; Battery life: Approx. 5 years; Functions: Quickmike type with adjustable measuring force; Inch-Metric: Metric; Delivered: Including box,?setting standard?(from 25 mm upward), 1 battery; Digital/Analog: Digital; Flatness: 1 ?m; Max. Permissible Error J MPE: ?4 ?m; Parallelism: 3 ?m; Accuracy [?m]: ?4; Measuring spindle: ?6,35 mm, non-rotating, spindle feed 10 mm; Measuring face: Hardened steel, micro-lap finish; Measurable module: 0.4-3; Digital step: 0,001 mm; Display: LCD, character height 10 mm; Measuring force accuracy (1) : ?0.1 + (force setting/10); Measuring force settings : 0.5 / 1 / 1.5 / 2 / 2.5;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/01.02.01.0641/Absolute%20Digital%20Disc%20Mic.%2C%20Adj.%20Force/$catalogue/mitutoyoData/PR/227-221-20/index.xhtml
