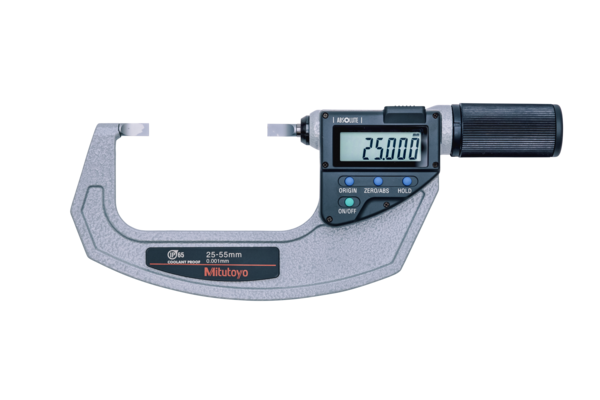

Absolute Digital Blade Mic. QuickMike

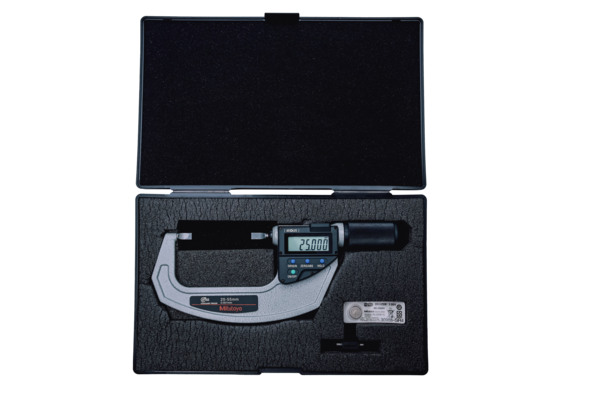

Full Description: This ABSOLUTE Digimatic Blade Micrometer Quickmike is designed to help you measure hard-to-reach features. It offers the following benefits: Blade-shaped anvil and spindle for measuring the groove diameter of shafts, keyways and other hard-to reach features Non-rotating spindle Fast spindle feed of 10 mm/revolution ; Stem hole ?: 25; Magnetic stand size (LXWXH): 13.5; Base size (LxWxH): 47; Mass [g]: 490; Range [mm]: 25 – 55; Battery life: Approx. 5 years; Inch-Metric: Metric; Delivered: Including box, setting standard (from 25 mm upward), 1 battery; Digital/Analog: Digital; Measuring force: 5 – 12 N; Max. Permissible Error J MPE: ?3 ?m; Parallelism: 3 ?m; Accuracy [?m]: ?3; Min of Measuring force: 5; Max of Measuring force: 12; Measuring spindle: ?6,35 mm, non-rotating, spindle feed 10 mm; Measuring face: Carbide-tipped or hardened steel spindle and anvil; Anvil / Spindle: Type A, hardened steel t=0.75 mm; Digital step: 0,001 mm; Display: LCD, character height 10 mm;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/ABSOLUTE%20Digimatic%20Blade%20Micrometer%20QuickMike/Absolute%20Digital%20Blade%20Mic.%20QuickMike/$catalogue/mitutoyoData/PR/422-412-20/index.xhtml
