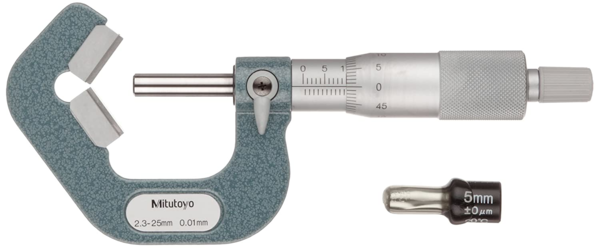

5 Flute V-Anvil Micrometer

Full Description: This V-Anvil Micrometer helps you measure cutting tools and taps. It offers the following benefits:

It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three or five flutes.
V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.
; Mass [g]: 220; Range [mm]: 2.3 – 25; Functions: For 5-flute cutting tools (108?); Inch-Metric: Metric; Delivered: Including box, setting standard, key; Digital/Analog: Analog; Graduation: 0,01 mm; Flatness: 0,6 ?m (spindle), 1,3 ?m (anvil); Max. Permissible Error J MPE: ?4 ?m; Accuracy [?m]: ?4; Measuring spindle: With spindle lock, ?6,35 mm, spindle pitch 0,75 mm; Measuring face: Prism angle 60?/108?; Scale: Thimble and sleeve satin chrome finish, ?18 mm; Setting standard: 167-327 ? 5 mm;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/01.02.01.075/5%20Flute%20V-Anvil%20Micrometer/$catalogue/mitutoyoData/PR/114-137/index.xhtml
