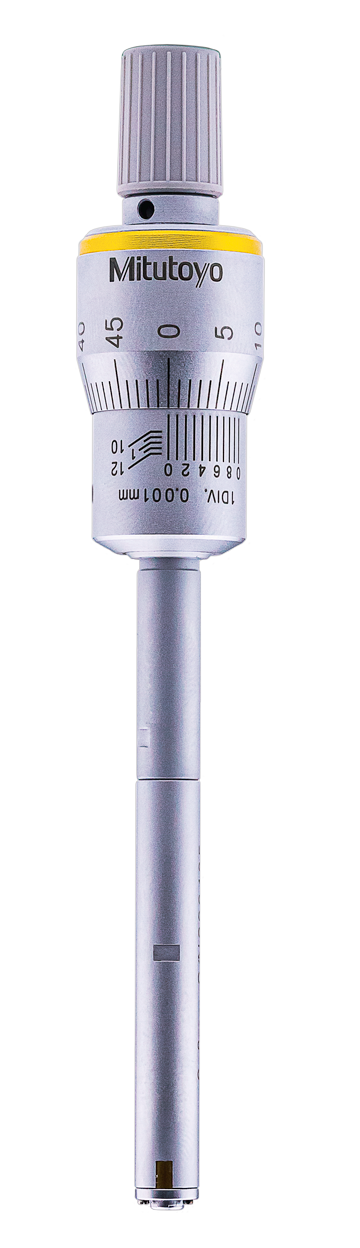

3-Point Internal Micrometer Holtest

Full Description: A non-digital 3-point Mitutoyo bore micrometer with titanium-coated measuring pins. The 3-point design enables stable measurement through automatic centering. The maximum measuring depth can be increased by 100mm using an optional extension rod if required. Ratchet stop guarantees repeatable measurement. Steel setting rings (optional) are available for accurate setting prior to measurement.; Magnetic stand size (LXWXH): 2.5; Mass [g]: 60; Range [mm]: 6 – 8; L1: 59; Inch-Metric: Metric; Measuring method: 3-point; Digital/Analog: Analog; Graduation: 0,001 mm; Max. Permissible Error J MPE: ?2 ?m; Accuracy [?m]: ?2 ?m; Measuring spindle: Spindle pitch 0,5 mm; Measuring face: Titanium coated tungsten carbide taper: tungsten carbide; Spindle pitch [mm]: ; Depth without extension: 59; Min of L2: 102; Max of L2: 104;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/01.04.06.02.02/3-Point%20Internal%20Micrometer%20Holtest/$catalogue/mitutoyoData/PR/368-161/index.xhtml
