Automatic Lifting Magnet LI-120 has bi-stable operational structure, which means that the device does not consume energy while maintaining the magnet?s states. The switching between states is controlled with a short electrical pulse either manually with operation buttons or automatically with a built-in load-sensing system. Low energy consumption extends the operating time and allows a compact construction with an internal chargeable battery. Long operating time, compact size and automatic control result to long and efficient working without interruptions.

• Lifting tool for professional use
• For flat steel material handling
• Automatic control
• Compact size
• Internal chargeable battery
• Bi-stable structure
• CE approved
• Over 1000 lifts with one complete battery charge
• WLL 120 kg (Steel S235 S?12 mm)
• Weight 6,5 kg

Ixtur MRP-170 is a pneumatically controlled neodymium permanent magnet that is suitable for gripping parts with different shapes. The compact size combined with high gripping force?make?them versatile for various applications including: lifters, grippers, fixtures, production automation, robotic solutions, end-of-arm-tooling, etc.

MRP-170 is capable of handling both round and flat parts, which is usually problematic for magnet grippers.

Ixtur magnets do not change their magnetic state if compressed air is lost – e.g. in case of a damaged hose or compressor malfunction. This feature provides reliability and safety to material handling.

Unlike vacuum lifting solutions, Ixtur MRP-170 handles also perforated material. The magnet consumes significantly less air than vacuum grippers, because compressed air is used only to switch the magnet on and off. MRP-170 can handle solid and perforated material, flat and round parts, made of steel or cast iron alike.

Ixtur Pneumatic Magnet MRP-170:

• Maintenance free
• Good size / gripping force ratio
• Gripping force:
  • Flat surface: 5.0 kN (WLL 170 kg with safety factor 3)
    • Material thickness: 25 mm
  • Round surface: 3.5 kN (WLL 120 kg with safety factor 3)
    • Material diameter: ?120 mm
• Durable construction
• Can be installed in any orientation
• Handles also perforated material and round parts, and for both steel and cast iron
• Can be used with a large range of material thicknesses
• Please see the brochure for detailed technical specifications

Ixtur MAP-120R and?MAP-180?are pneumatically controlled neodymium permanent magnets, which have excellent size / gripping force ratio and extremely low residual gripping capacity. The compact size combined with high gripping force?make?them versatile for various applications including: lifters, robot grippers, fixtures, production automation, etc.

Ixtur MAP pneumatic magnets do not change their magnetic state if compressed air is lost – e.g. in case of a damaged pipe or compressor malfunction. This feature provides reliability and safety to material handling.

MAP-180 provides maximum gripping force with flat parts that fully cover the magnet?s gripping surface. MAP-120R?s gripping surface is optimized for parts that do not fully cover the whole gripping surface of the magnet, e.g. cylinders, pipes and irregularly shaped objects.

Unlike vacuum lifting solutions, Ixtur magnets handle also perforated material. The magnets consume significantly less air than vacuum grippers, because compressed air is used only to switch the magnet ON and OFF. MAP-120R is the best choice when gripping rougher surfaces, e.g. parts made of cast iron.

Ixtur MAP120R and MAP-180:

• Maintenance free
• Excellent size / gripping force ratio
• Gripping force:
  • MAP-120R with flat material: 3.53 kN (WLL 120 kg with safety factor 3)
  • MAP-120R with cylinders: 2.06 kN (WLL 70 kg with safety factor 3)
  • MAP-180: 5.30 kN (WLL 180 kg with safety factor 3)
• Low residual gripping force, i.e. gripping force at the magnet’s OFF state
• Durable construction
• Can be installed in any orientation
• Handles also perforated material
• Can be used with a large range of material thicknesses

Please see the brochure for detailed technical specifications.

Ixtur MRP-30F is a magnetic gripper for industrial automation and manual lifting. The MRP-30F?magnet is the optimal gripper for a robot when the load does not cover the entire contact area of the magnet.

Lifting capacity of Ixtur MRP-30F is 30 kg (safety factor of 3).

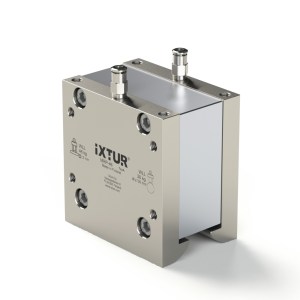

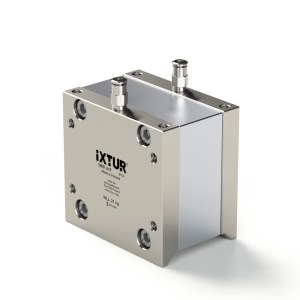

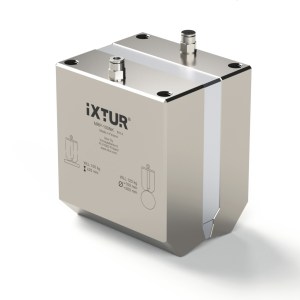

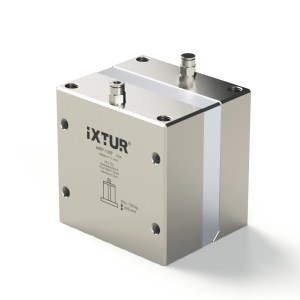

Ixtur has a wide range of pneumatically actuated magnets that are suitable as robot grippers for industrial automation. The gripping areas of the magnets have been optimized for different shapes of workpieces. Lifting capacity ranges from 6 kg to 180 kg (safety factor of 3).

The magnet is easy to control with compressed air. The magnet maintains its magnetic state even when the air pressure is lost. Ixtur pneumatic magnets are maintenance-free and have a short cycle time, allowing high production speed and efficient automation.

The Ixtur pneumatic magnets are suitable for robot grippers, fixtures and production automation. The combination of compact design, strong lifting force and low residual gripping force make these magnets the optimum choice as gripper for robot.
